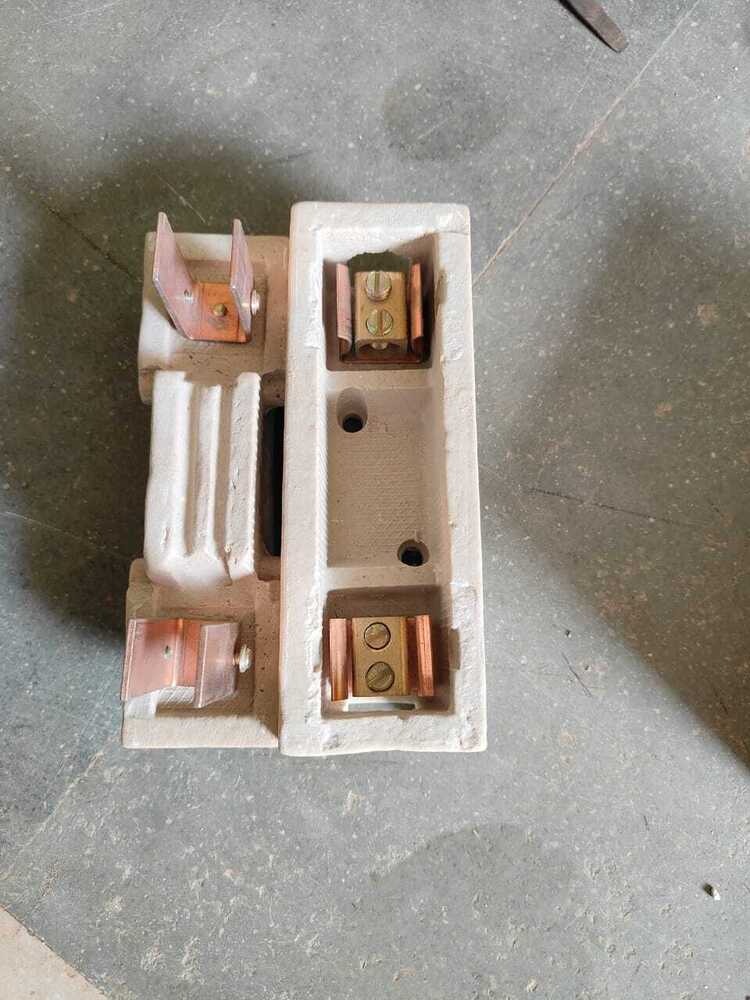

Porcelain Kitkat fuse

Porcelain Kitkat fuse Specification

Power Factor
N/A (not applicable)

Mounting Type
Base/Panel Mounted

IP Rating
IP20 (Indoor, not water resistant)

Insulation Material
Porcelain Ceramic

Surface Finish
Glazed Porcelain

Feature
High Thermal Stability, Non-Flammable, Reusable Base

Humidity %
<95% RH (non-condensing)

Connector Type
Brass/Copper Strip Terminals

Shape
Rectangular

Efficiency
Passive (N/A)

Operating Temperature
-20C to +70C

Overheating Protection
Thermally insulated porcelain body

Product Type
Kitkat Fuse/Porcelain Fuse

Application
Electric circuit protection / Distribution boards

Protection Level
Short Circuit and Overcurrent

Frequency (MHz)
50 Hz (nominal power utility frequency)

Rated Voltage
250V - 500V AC

Energy Consumption
N/A (Passive protection device)

Output Type
N/A (Current Interruption Protection)

Color
White (Porcelain) with Copper/Brass Finish

Dimension (L*W*H)
Approx. 125mm x 60mm x 40mm (may vary)

Weight
Approx. 350-500 grams

Size
Standard 32A/63A (Custom sizes available)

Input Voltage
250V - 500V AC

Phase
Single Phase

Connection Type
Bolt/Screw Terminal

No Of Poles
1 Pole

Material
Porcelain with Copper/Brass Contacts

Mechanical Durability
High, resistant to cracking and chipping

Applications
Residential, commercial, and industrial switchboards

Flame Resistance
Yes, due to glazed porcelain body

Arc Quenching
Porcelain provides effective arc quenching

Current Rating
Typically 32A or 63A (varies by specification)

Environmental Suitability
Indoor dry environments only

Contact Material
Copper/Brass alloy for corrosion resistance

Fusing Element Type
Copper/Alloy strip (not included in base shown)

Breaking Capacity
High breaking capacity for overcurrent protection

Reusability
Base is reusable, fuse elements replaceable

Fuse Replacement
Simple manual replacement

Porcelain Kitkat fuse Trade Information

Minimum Order Quantity
100 Number

Supply Ability
1000 Per Week

Delivery Time
7 Days

About Porcelain Kitkat fuse

Take advantage of our noble Porcelain Kitkat Fuse, a dazzling component for overcurrent protection engineered for residential, commercial, and industrial distribution boards. Featuring a decorated glazed porcelain body with high thermal stability, this fuse boasts remarkable mechanical durability and efficient arc quenching. Customizable with various current ratings (32A/63A) and competitive pricing, the base is reusable while fuse elements are easily replaceable. Its corrosion-resistant copper/brass contacts ensure longevity, while the flame-resistant, non-flammable construction offers supreme safety. Ideal for single-phase applications needing IP20-rated robust protection.

Versatile Application Areas and Usage Types

Porcelain Kitkat Fuses are designed to serve a broad spectrum of applications, ranging from electric circuit protection in residential complexes to commercial distribution boards and heavy-duty industrial switchboards. They are suitable for indoor dry environments, ensuring safety and high performance for single-phase electrical circuits. The reusable base and replaceable fuse elements add notable value, making them an efficient choice for both main and branch circuit protection as well as various electrical distribution systems.

Payment Terms, Packaging, and Logistics Details

Purchasing the Porcelain Kitkat Fuse is smooth and transparent. Standard outlay includes competitive pricing with flexible payment terms, typically via purchase order confirmation. Every unit is securely packed in robust cartons for safe transit, preventing cracks or damage. Our FOB port is majorly in India, ensuring prompt logistics and bulk shipping capabilities. Efficient inventory management supports swift order fulfillment and on-time delivery for both regular and custom orders.

FAQ's of Porcelain Kitkat fuse:

Q: How do you manually replace the fuse element in the Porcelain Kitkat Fuse?

A: To replace the fuse element, first disconnect the power supply. Open the fuse base, remove the blown element, and install a new copper/alloy strip as specified. Secure the base and ensure all terminals are properly tightened before restoring power.

Q: What application areas are best suited for using this Kitkat fuse?

A: This Kitkat fuse is ideal for residential, commercial, and industrial switchboards. It efficiently protects against short circuits and overcurrent in single-phase electric distribution systems, especially for indoor dry settings.

Q: Where should the Porcelain Kitkat Fuse be installed for optimal performance?

A: Install the fuse indoors in a dry, non-condensing environment on distribution boards or switch panels. Avoid outdoor or high-humidity areas, as it is rated IP20 and best suited for controlled conditions.

Q: What are the main benefits of the porcelain-glazed body in the Kitkat fuse?

A: The porcelain-glazed body provides exceptional flame resistance, high thermal insulation, and mechanical durability. It resists cracking and chipping, while offering effective arc quenching for added electrical safety.

Q: When is it necessary to consider customizing the Kitkat fuse size or rating?

A: Customization is beneficial when your application requires a specific current rating or dimension for proper fitting within your distribution system. Various sizes and ratings, such as 32A/63A, are available to meet diverse installation demands.

Q: How does the mechanical durability of this fuse enhance its life cycle?

A: The high mechanical durability, due to the robust porcelain ceramic construction, means the fuse is highly resistant to wear, cracking, and chipping, ensuring a longer service life even with regular element replacements.
